Automatic Paper Fan Punching and Cutting Machine
Automatic Paper Fan Punching and Cutting Machine

Automatic Paper Fan Punching and Cutting Machine

Introduction:
This punching and die cutting machine adopts micro-computer to regulate the speed, servo motor to feed paper and use the photo sensor to cut and collect blanks at a high speed.It can die cutting by setting certain length or following color marks.Compared with the traditional Hydraulic machine, it is much more efficient time-saving,material-saving,and much more profitable.
Important parameters:

Paper Width: 1000-1200mm

Available Paper Thickness : 150-400gsm

Cutting Speed: 200-400 strockes/min

Get a Quote
Product Description

Product Description

The RD-CQ-1000 roll paper die cutting machine adopts variable frequency speed regulation, servo feeding, and photoelectric tracking to achieve high-speed punching and tidying. Compared with traditional rolling machines, it is faster, time-saving, and material saving, with considerable economic benefits.

Main Technical Parameters

Model

RD-CQ-1000

RD-CQ-1200

Machine Dimensions

2850*1800*2000mm

3500*2200*1800mm

Machine Weight

1500kg

4500kg

Cutting Speed

200-280times/min

320-400times/min

Paper Width

1000mm

1200mm

Electric Power

5kw

8kw

Cutting Precision

±0.15mm

±0.15mm

Paper Gram Weight

150-400gsm

150-400gsm

Air Pressure Requirement

0.5mpa,0.25 m³/min

0.5mpa,0.25 m³/min

Max.Roll Width

1500mm

1500mm

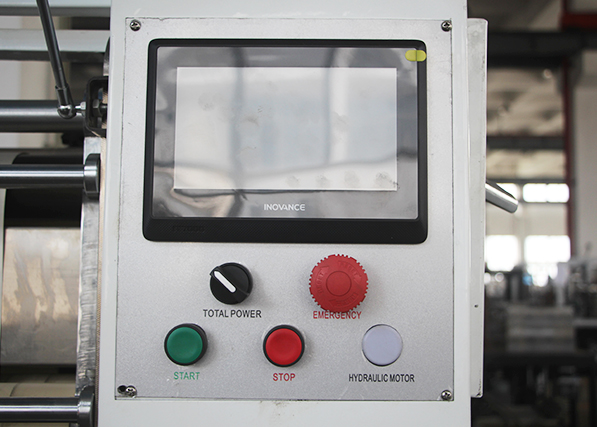

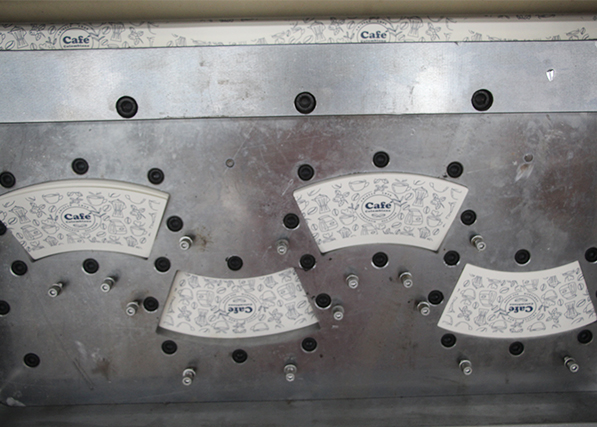

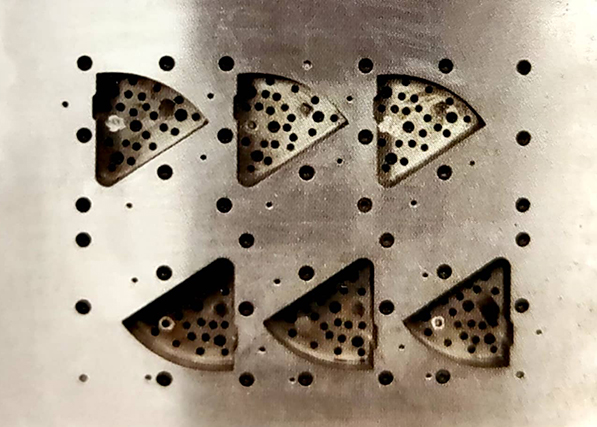

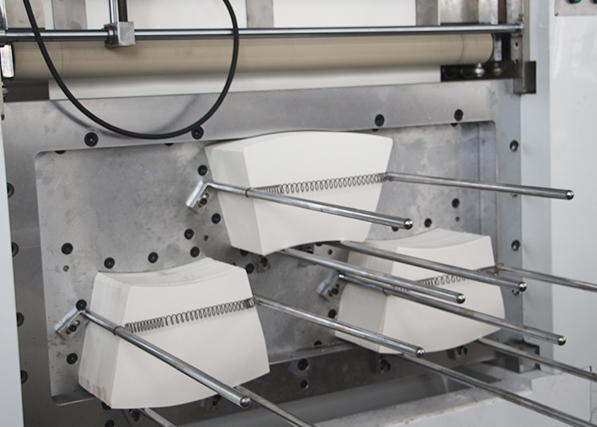

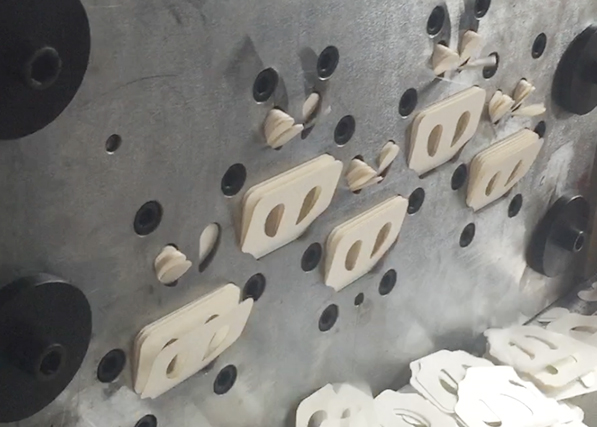

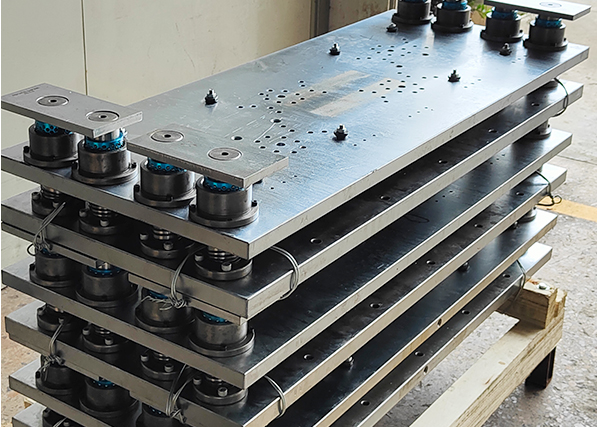

Product details display
image.png image(8b081896e7).png image(20a1a07d06).png
image(c4711a50b5).png image(9e8819ef41).png image(7c6f63a9d4).png
