Paper Cup Production Machine

Important parameters:

Speed:180-210pcs/min
Cup size: 2.5-12oz

Product Description

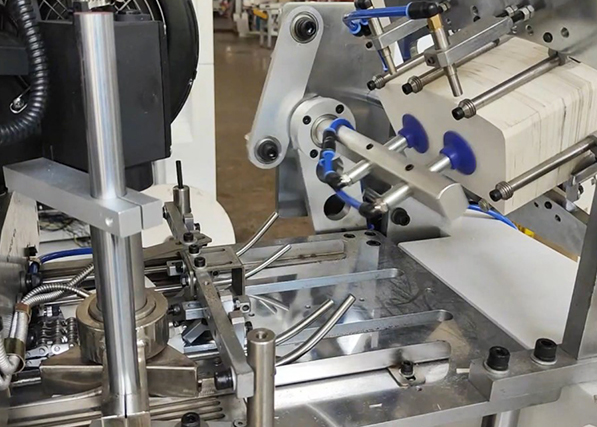

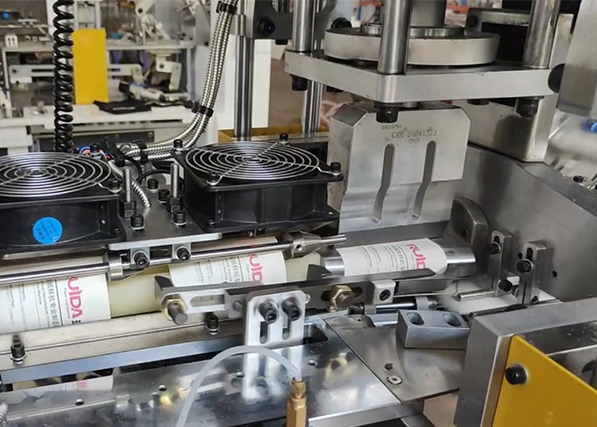

RD-XLF200BF adopts a full digital servo control system to ensure high precision and stable operation. The main forming station, curling unit, ultrasonic system, and bottom feeding are all servo-driven, delivering efficient and consistent paper cup production. This model is suitable for 2.5–12oz paper cups

Parameters

Technical Data
Cups Specifications	2.5-120Z
Cup forming size	Top cup diameter:50-85mm
Cup forming size	Cup height:40-110mm
Paper Specifications	170-350g/m²
Paper material	Single and double PE/PLA/ Non plastic coated paper
Speed	180-210pcs/min
Power supply	380V50HZ 3Phase
General Power	10Kw
Gas source	0.5m³/min
Weight	2500Kg
Machine size	230016002000mm

advantage

why choose us

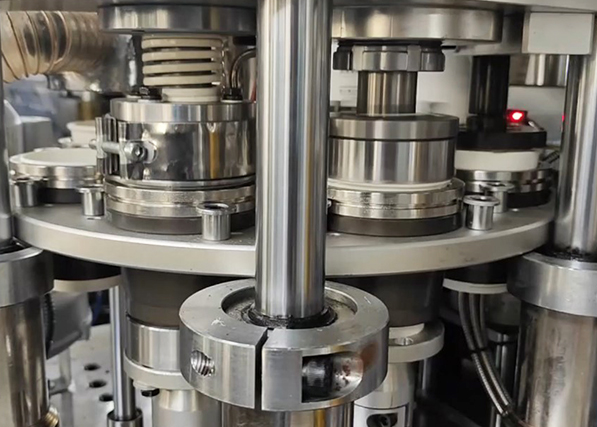

High-Precision Servo Control

√ Fully digital closed-loop servo control
√ Positioning accuracy up to ±0.05 mm
√ Rigid structure for low vibration and longer service life
Smart Operation System

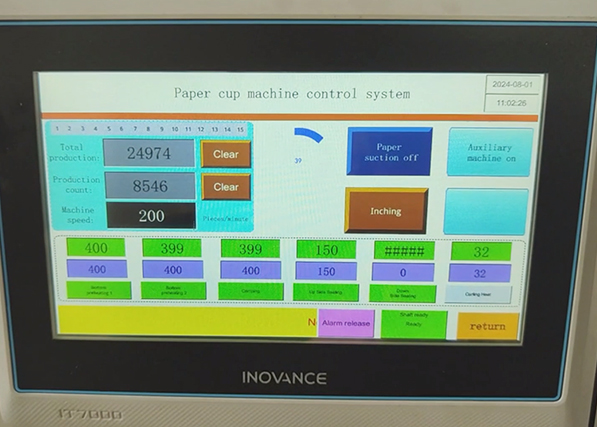

√ 7-inch touch screen with PLC control
√ Real-time monitoring, fault diagnosis, and data storage

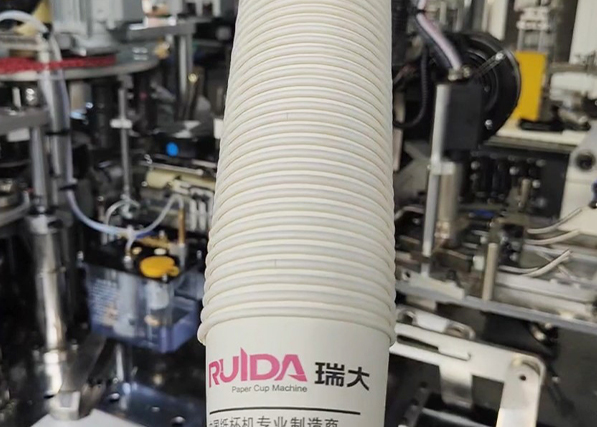

Stable & Efficient Production

√ Speed up to 210 cups/min

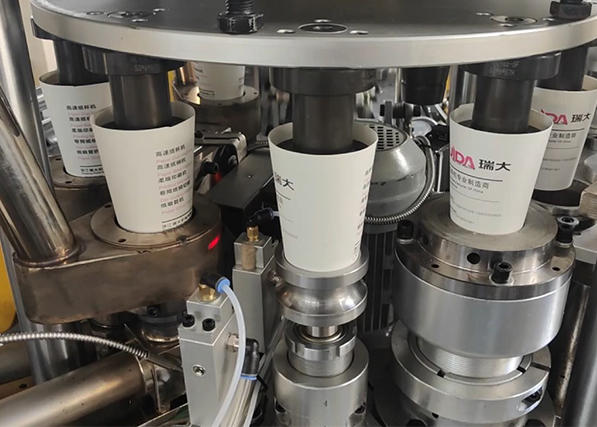

√ Automatic curling and bottom sealing
√ Yield rate ≥ 99.5%
Flexible Cup Production

√ Quick-change molds for 2.5–12 oz cups
√ Supports PE / PLA coated paper, single or double sided
